Stevens Drives & Controls, Inc.


Medium Voltage and High HP Drive/Motor systems

Medium Voltage Variable Frequency Drives
  • Voltages: 2300, 3300 and 4160 VAC inputs

  • Power: up to 8,000 HP

  • Efficiency: 99% (highest of any drive)

  • Harmonics: multi-pulse low harmonic design

Brochure

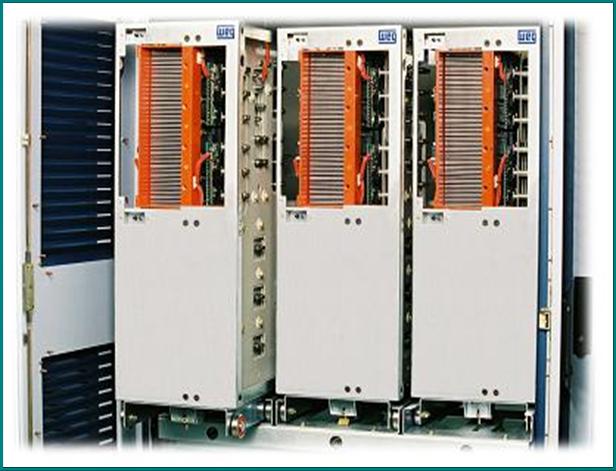

Modular High HP Variable Frequency Drives
  • Voltages: 380 to 690 VAC inputs

  • Power: 500 to 2,500 HP

  • Harmonics: multi-pulse low harmonic design available

Brochure
Solid State Reduced Voltage Starters SSW7000
  • Torque control Accessories can be easily and quickly installed by using the  Plug and Play concept
  • Motor voltage: 2.3kV, 4.16kV or 6.9kV
  • Power: 750 hp to 4500 hp (560 kW to 3600 kW)
  • Protection Degree: IP41 or Nema 12
  • Operating interface (HMI) with graphic LCD
  • Real time clock
  • Main and bypass vacuum contactors
  • Medium voltage fuses
  • Power and control insulated by fiber optics
  • SoftPLC Function
  • USB connection to PC, Licence-free software SuperDrive and WLP
  • Motor thermal protection - PT100 - 8 channels (optional accessory)
  • 5 start modes to get the motor running per your application
  • Network communication boards (accessories): Devicenet, Profibus-DP, Ethernet and Modbus, RS-232 or RS-485
Brochure

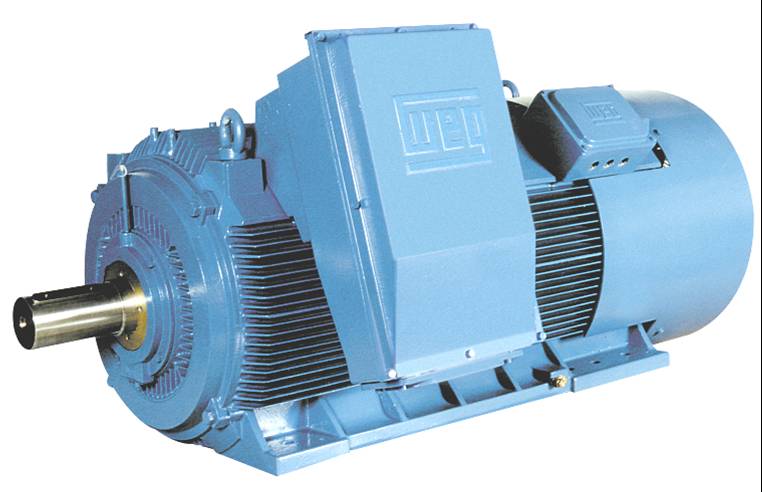

Medium Voltage Motors H Line
  • 120 to 4000 Hp
  • Motors manufactured in 2 to 12 poles
  • 5000 to 10409 frames
  • TEFC (IP55, IPW55) enclosures
  •

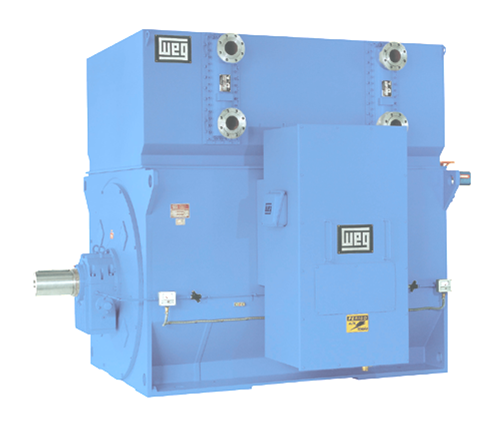

    Medium Voltage Motors M Line

    Output: 135 to 30,000 Hp
    Poles: 2 to 24
    Voltage: 220 to 13,800
    Enclosures: ODP/WP/TEAAC/TEWAC
    Frame: 5800 to 16000 frame

    Brochure
